Our round tube glides are tiltable thanks to their design and allow them to reach an angle of up to 20º . The body of the tip is made of Low-density polyethylene .

The piece has different bases which are manufactured / supplied in different materials that, in summary, have the following features:

* With base of PA6 (Nylon 6) : It offers a good sliding and anti-wear to the standard part. Mainly for parquet and wooden floors. Also valid for humid environments / floors or outdoors.
* Based on wool felt (FTR) : Perfect for delicate and smooth floors such as parquet. In addition, it gives silencing properties to the piece (Sound-reducing property) as well as good sliding and anti-scratch protection . Not recommended for outdoor or wet floors.
* With metal base (S) : Provides a good finish and greater resistance. Recommended for exteriors, non-smooth surfaces (concrete, carpets ...) or elastic floors (pavilions, courts ...).

Contact our commercial department if you want special colors, additional dimensions and custom designs, all under a minimum order.
More information on the downloadable generic drawing.

Rysunki PDF:
UL94:
IP:
RoHS:
Jednostka miary:: Milimetry


Numer katalogowy
Dla rury (D)
Grubość rury ( C )
D1
H / L
d / d1



Więcej
info.
00300410056 14 1,50 do 2,00 23,00 13,00 /16,70 11,60 / 8,45
00300410057 16 1,50 do 2,00 23,00 13,30 / 26,00 13,70 / 10,85
00300410058 18 1,50 do 2,00 23,00 14,00 / 24,00 15,80 / 12,80
00300410059 18 1,50 do 2,00 27,00 14,00 / 24,00 15,80 / 12,80
00300410060 20 1,50 do 2,00 23,00 13,50 / 25,70 17,65 / 14,80
00300410061 20 1,50 do 2,00 27,00 13,00 / 25,70 17,65 / 14,80
00300410062 22 1,50 do 2,00 23,00 13,00 / 25,70 19,85 / 14,80
00300410063 22 1,50 do 2,00 27,00 13,00 / 25,70 19,85 / 14,80

Jeśli są Państwo zainteresowani częściami z rodziny LGDK, mogą być Państwo również zainteresowani tymi oto rodzinami cześci:

Our round tube glides are tiltable thanks to their design and allow them to reach an angle of up to <b> 19º </b>. The body of the tip is made of <b> Polyamide 6 </b>. The base of the glide offers <b> good stability </b> due to its considerable dimension. <br> <br>
The piece has different bases which are manufactured / supplied in different materials that, in summary, have the following features: <br><br>
* <i> With base of <b> PA6 (Nylon 6) </b> </i>: It offers a <b> good sliding and anti-wear </b> to the standard part. Mainly for parquet and wooden floors. Also valid for humid environments / floors or outdoors. <br>
* <i> Based on <b> PTFE (Teflon) </b> </i>: Provides the best <b> sliding effect </b> and minimal “dynamic and static” friction in most types of soils. <b> Very good wear resistance </b> and, thanks to an additional layer of TPE inside, it also has <b> noise damping </b>. Mainly for textile floors or carpets. Also suitable for smooth floors (Unintentional slipping is possible). <br>
* <i> Based on <b> wool felt </b> </i>: Perfect for <b> delicate and smooth floors </b> such as parquet. In addition, it gives <b> silencing properties </b> to the piece (Sound-reducing property) as well as <b> good sliding and anti-scratch protection </b>. Not recommended for outdoor or wet floors. <br>
* <i> With base with adhesive insert in <b>TPE</b> </i>: The soft material gives a good <b> anti-slip effect </b> and a very good <b> sound-reducing property </b> since the base dampens the noise. Recommended for wet and outdoor environments / floors where you want to reduce sound. <br>
* <i> With <b> metal base</b> </i>: Provides a <b> good finish and greater resistance. </b> Recommended for exteriors, non-smooth surfaces (concrete, carpets ...) or elastic floors (pavilions, courts ...). <br><br>
Contact our commercial department if you want special colors, additional dimensions and custom designs, all under a minimum order. <br>
More information on the downloadable generic drawing.   Nasza zaślepka z pochyłą podstawą do rur okrągłych może być pochylona, dzięki swojemu systemowi nachylenia do 25º.   Nasze stopki do fur okrągłych LGRL posiadają kąt odchylenia od 8º do 12º lub od 18º do 22º i są produktem idealnym do aplikacji w designerskich krzesłach, stołach i fotelach. Na życzenie mogą być produkowane w <b> kolorach z palety RAL </b> oraz z podstawą wykonaną z różnych materiałów dostosowanych do określonych powierzchni. Charakterystyka materiałowa:

<br><br>
* <i><b> podstawa z LDPE (polietylen)</b></i>: materiał z dobrymi właściwościami poślizgowymi, dostosowany do wielu różnych typów podłóg.
<br>
* <i><b> podstawa filcowa </b></i>: materiał z dobrymi właściwościami poślizgowymi, zapobiegający zarysowaniom. Przeznaczony dla delikatnych powierzchni takich jak parkiety drewniane oraz panele podłogowe. <br>
* <i><b> podstawa z PA6 (nylon)</b></i>: posiada dobre właściwości poślizgowe oraz dużą wytrzymałość na zużycie. Przeznaczony dla delikatnych powierzchni takich jak parkiety drewniane oraz panele podłogowe.
<br>
* <i><b> podstawa z POM + PTFE (pom + teflon)</b></i>: posiada dobre właściwości poślizgowe, odporny na ścieranie, wibracje oraz chemikalia. Przeznaczony do powierzchni tekstylnych, jak dywany i wykładziny.
<br>
* <i><b> podstawa z PUR (poliuretan)</b></i>:  materiał przeciwpoślizgowy, odporny na wibracje. Przeznaczony dla powierzchni drewnianych i ceramicznych
<br>
* <i><b> Korpus EVA (amortyzujący), podstawa z POM + PTFE (POM + Teflon)</b></i>:  przeciwpoślizgowy, odporny na wibracje, tłumiący dźwięki. Dla podłóg ceramicznych oraz drewnianych. Rekomendowany w celu zredukowania do maksimum hałasu powstającego podczas przesuwania krzesła po podłożu, idealny dla zastosowania w teatrach, salach konferencyjnych, bibliotekach etc.

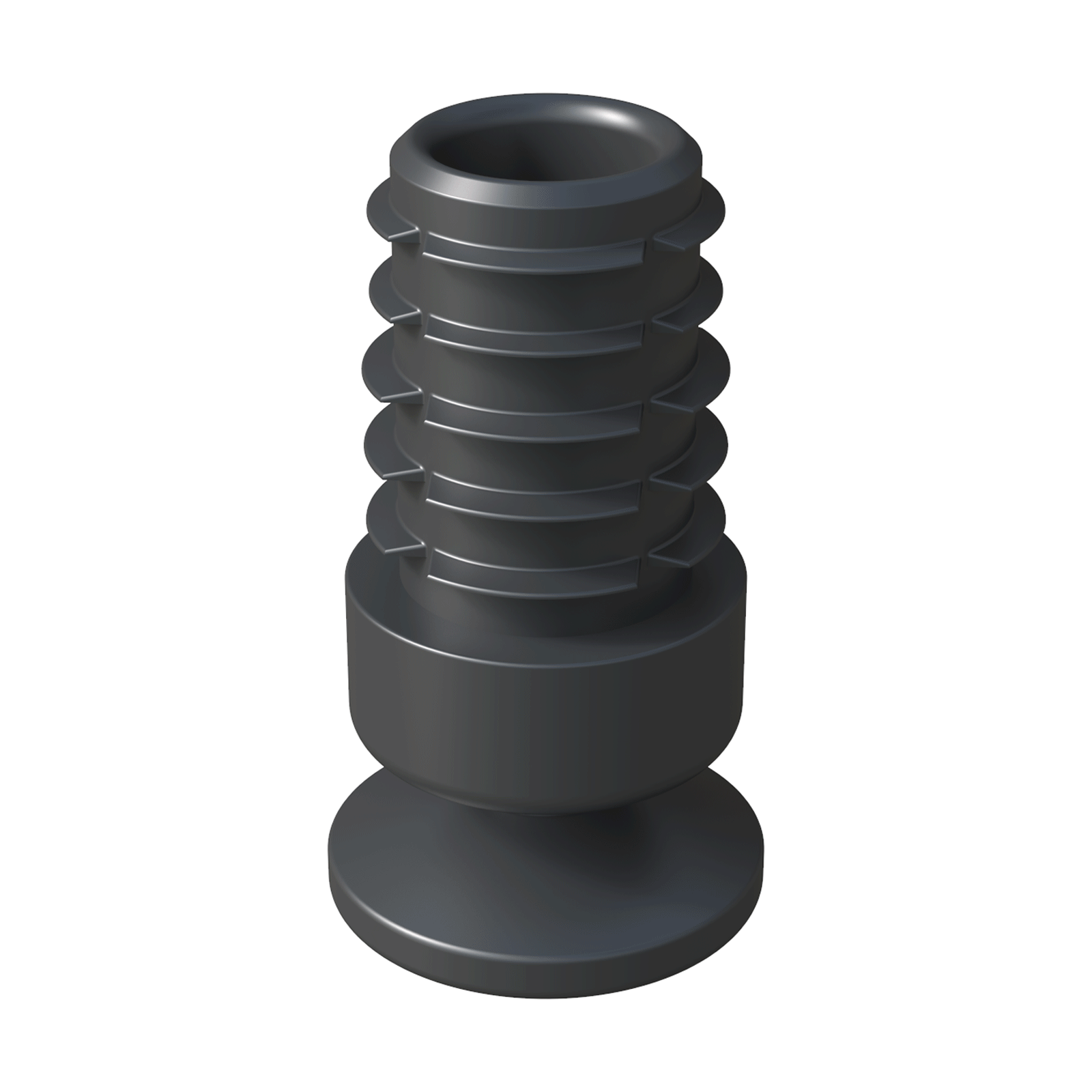

<br>   Our tube insert for round tubes LGLP is ideal for chairs. It can be produced in <b> RAL colors</b> on demand and its base is produced and offered in various materials. As a sum up, here goes their caracteristics:
<br><br>
* <i><b>PA6 base (nylon)</b></i>: good sliding and no wear-down. For parquet and wood flooring.
<br>
* <i><b>POM+PTFE base </b></i>: good sliding,  friction-proof, vibration-proof and chemically resistant. For textile flooring like carpet or rugs
<br>
* <i><b> EVA body (rubbery) with POM+PTFE </b></i>:  antiskid, vibration-proof, and sound-proof. For ceramic and wood flooring. Recommended to reduce sound (meeting rooms, theaters)...
<br>
