Our ellipsoid saddle for round tube is inserted under pressure through the central pin which locks and immobilizes the piece in its housing to prevent it from moving once it is placed.
The piece has different bases which are manufactured/supplied in different materials that, in summary, have the following features:

* Without base. The manufacturing material, Polyamide 6, allows good sliding and provides an anti-wear effect to the standard part.
* With sliding base made of PTFE “Teflón” which provides the best sliding effect and a mínimum “Dynamic and static” friction on most types of floors.
* With wool felt sliding base perfect for delicate floors such as parquet. In addition, it gives silencing properties to the piece (Sound reducing property).
* With base with an adhesive insert in TPE o PVC-P, depending on the reference, which gives a good non-slip effect. The soft material of the base gives the piece a very good sound-reducing property since the TPE or PVC-P of the base dampens noise. Advisable to reduce sound in (conference rooms, theaters, etc…).

Contact our commercial department if you want special colors, additional dimensions and Custom designs, all under a mínimum order.

Rysunki PDF:
UL94:
IP:
RoHS:
Jednostka miary:: Milimetry


Numer katalogowy
Dla rury
L
D / d
H



Więcej
info.
00700600001 18 do 20 25,00 28,00 / 5,70 5,50
00700600002 21 do 24 26,50 28,50 / 5,70 4,50
00700600003 23 do 24 30,50 33,50 / 5,70 5,00
00700600004 24 do 26 31,50 34,00 / 5,70 4,50
00700600005 27 do 29 33,50 36,00 / 5,70 5,00
00700600006 30 do 32 34,50 39,50 / 5,70 5,00
00700600007 32 do 34 36,00 41,50 / 5,70 5,00
00700600008 34 do 36 38,50 44,50 / 6,40 5,50
00700600009 59 do 61 48,00 67,00 / 6,40 7,00

Jeśli są Państwo zainteresowani częściami z rodziny BWA, mogą być Państwo również zainteresowani tymi oto rodzinami cześci:

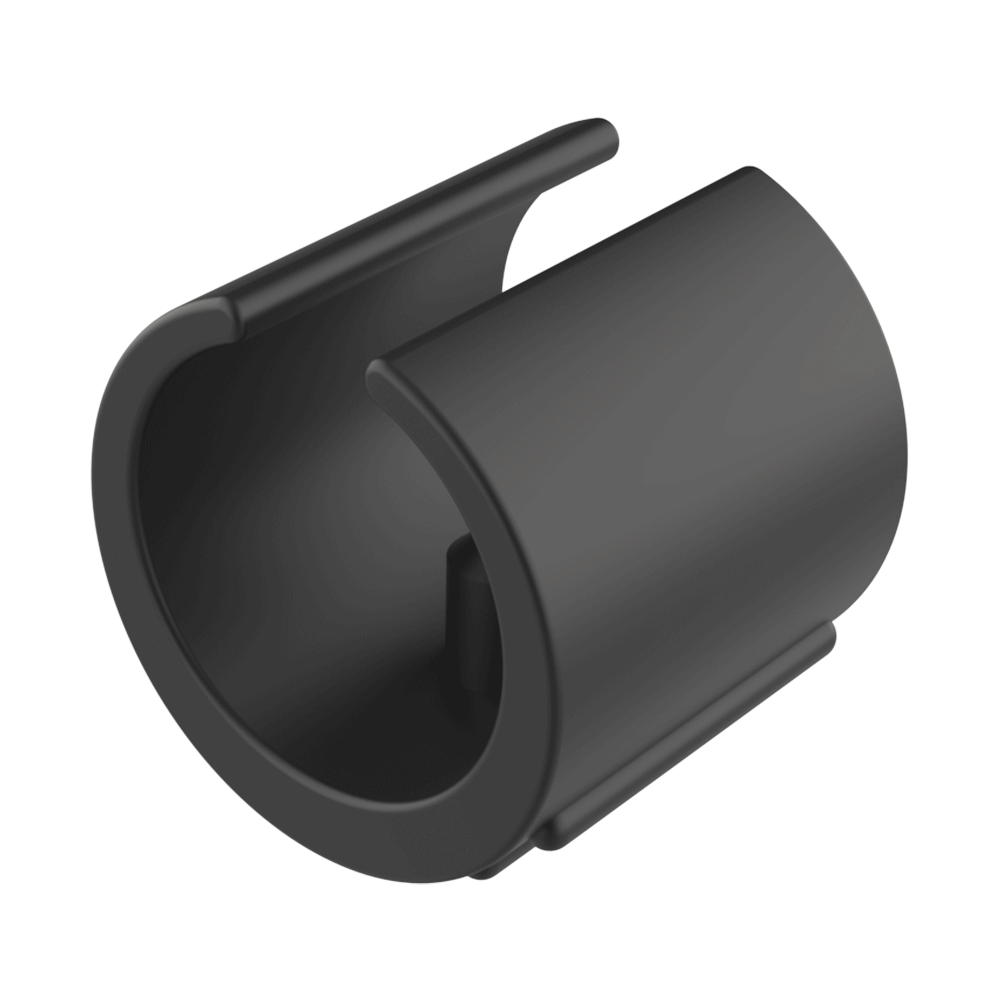

Nasza stopka siodełkowa do rur okrągłych jest idealna do metalowych nóżek krzeseł. Kołek wchodzi w otwór, a krawędzie zatrzaskują się na rurze i blokują w zamontowanym miejscu. Stopka jest także dostępna bez kołka (grupa LWSP).
