Opis i właściwości
The LHDG female handwheel knobs have a robust star-shaped head. They are made of fibreglass-reinforced nylon (PA620%GF) and the the insert with metric thread is made of galvanized/stainless steel. Contact our sales department to find out the sales conditions, if you want to know the pieces in stainless steel and/or in identifying colors.Zdjęcia i rysunki techniczne

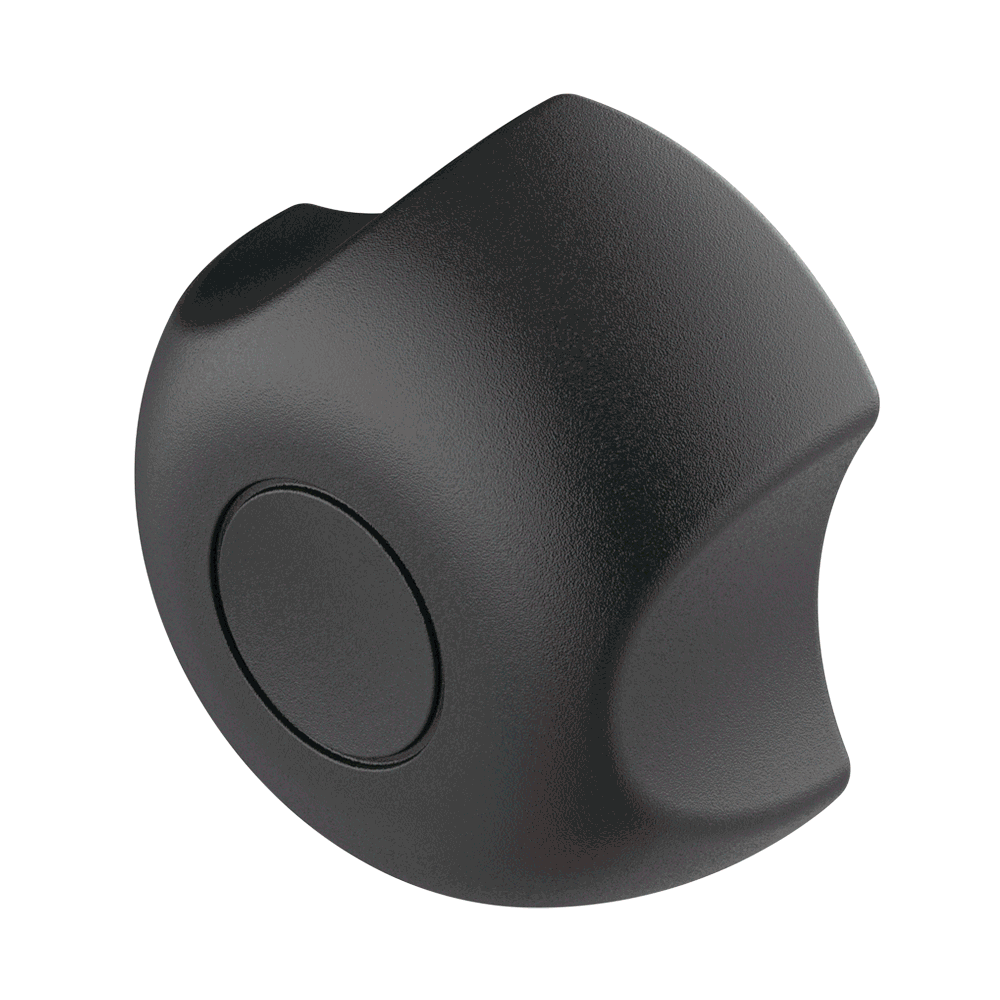

Widok produktu
Rysunek techniczny
Wideo
Numery katalogowe i wymiary: Pokrętło żeńskie z główką gwiazdkową (zamkniętą)
| Numer katalogowy | M |
A |
C |
D |
L |
Więcej info. |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00301200871 | M4 | 25,00 | 12,40 | 5,50 | 17,00 | ||||||||
| 00301200872 | M5 | 25,00 | 12,40 | 5,50 | 17,00 | ||||||||
| 00301200874 | M5 | 31,50 | 14,00 | 6,00 | 20,00 | ||||||||
| 00301200873 | M6 | 25,00 | 12,40 | 5,50 | 17,00 | ||||||||
| 00301200875 | M6 | 31,50 | 14,00 | 6,00 | 20,30 | ||||||||
| 00301200876 | M6 | 40,50 | 17,00 | 7,00 | 25,50 | ||||||||
| 00301200877 | M8 | 40,00 | 17,00 | 7,00 | 24,80 | ||||||||
| 00301200879 | M8 | 50,00 | 19,00 | 8,50 | 32,00 | ||||||||
| 00301200878 | M10 | 39,50 | 17,50 | 7,50 | 25,00 | ||||||||
| 00301200880 | M10 | 50,00 | 19,30 | 8,50 | 32,00 | ||||||||
| 00301200881 | M10 | 63,00 | 23,00 | 11,00 | 40,00 | ||||||||
| 00301201960 | M12 | 50,00 | 19,30 | 8,50 | 32,00 | ||||||||
| 00301200882 | M12 | 63,00 | 23,00 | 11,00 | 40,00 | ||||||||
| 00301201961 | M16 | 63,50 | 23,00 | 11,00 | 40,00 |
