The WBB plug is manufactured in different materials and colors depending on the reference. It is used in many applications such as sealing round holes to prevent the entry of water, moisture and dust.

Rysunki PDF:
UL94:
IP:
RoHS:
Jednostka miary:: Milimetry


Numer katalogowy
Średnica otworu
Grubość panelu
E
d
C
L



Więcej
info.
02800200004 6,50 0,60 10,50 7,90 2,20 2,80
02800200027 12,00 0,50 do 1,50 18,80 12,50 3,00 4,00
02800200006 14,00 0,70 do 2,50 24,10 17,00 6,50 7,00
02800200002 18,00 0,50 do 2,50 29,00 18,80 4,00 5,00
02800200003 20,50 0,50 do 3,00 28,70 21,60 3,70 2,40
02800200007 22,00 do 24,00 3,00 do 4,00 31,40 22,65 6,10 6,80
02800200008 25,00 do 25,40 2,50 do 3,00 33,70 27,80 3,30 7,00
02800200005 28,00 0,60 do 2,00 39,00 28,80 4,80 5,20

Jeśli są Państwo zainteresowani częściami z rodziny WBB, mogą być Państwo również zainteresowani tymi oto rodzinami cześci:

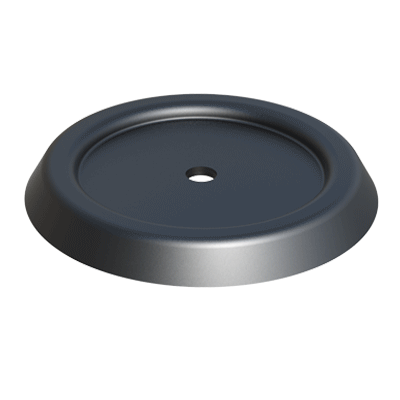

The WDA range of cable glands for round holes prevent cables and tubes from being damaged by passing through a panel hole. Its possibility of firm adjustment adapting to the diameter of the tube / cable, prevents the entry of water and dust.
Possibility to manufacture it in other colors and sizes, contact us.
