Nakładka na śrubę MKPP


Opis i właściwości

Our Uniscrew caps protect the screw heads from shocks and dirt and at the same time gives the heads a nice finish. It accepts a wide variety of screw sizes, which reduces stocks as well as assembly times thanks to its integrated washer. The manufacturing material is a copolymer PP (polypropylene) with a very high resistance to impacts resistant even at temperatures of -20ºC . It contains also a UVA additive to prevent degradation as a result of sunlight and bad weather.

During the manufacturing of these pieces we use an additive that favors their biodegradation without affecting their behavior during their useful life. Check here for more details about the properties of the biodegradable additive.
  Produkowane w kolorach RAL

Dokumentacja techniczna i zgodność

  • Rysunki PDF
  • UL94
  • IP
  • RoHS
  • Jednostka miary:Milimetry
  • Bio LineBIO LINE następujące odniesienia są również dostępne w materiałach przyjaznych dla środowiska. Skontaktuj się z naszym biurem handlowym, aby uzyskać więcej informacji.
  • Wideo

Zdjęcia i rysunki techniczne

Widok produktu

Nakładka na śrubę MKPP - Widok produktu

Rysunek techniczny

Nakładka na śrubę MKPP - Rysunek techniczny

Wideo


Numery katalogowe i wymiary: Nakładka na śrubę

Numer katalogowy
Gwint metryczny
Gwint UNC/UNF
A
B
C
H
D - h
UV protection



Więcej
info.
00500700015 M3 do M4 #4 · #6 11,70 4,80 4,10 3,40 7,20 / 2,40
00500700016 M4 do M5 #8 · #10 13,85 5,15 4,90 3,75 9,60 / 2,80
00500700017 M5 do M6 1/4 17,90 6,48 6,25 5,10 12,80 / 4,15
00500700019 M8 3/8 24,13 11,18 10,70 7,74 17,62 / 6,20

Jeśli są Państwo zainteresowani częściami z rodziny MKPP, mogą być Państwo również zainteresowani tymi oto rodzinami cześci:

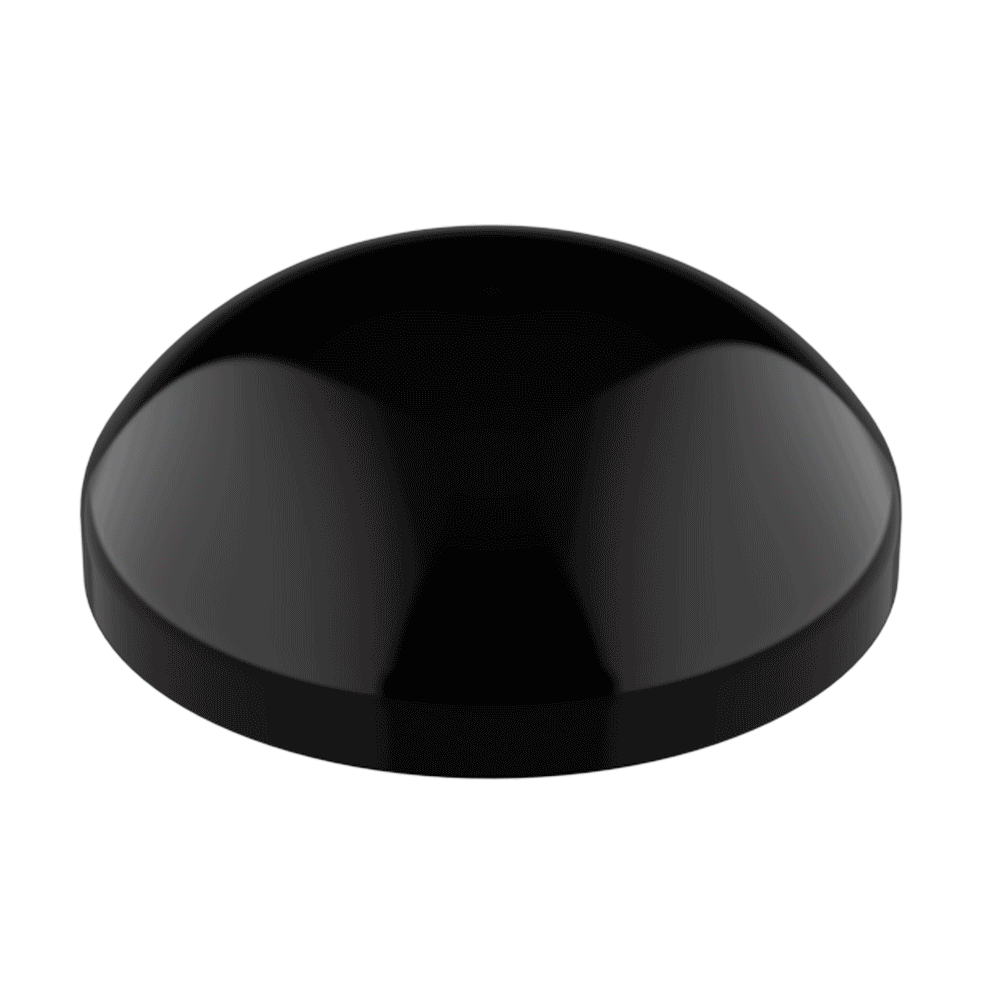

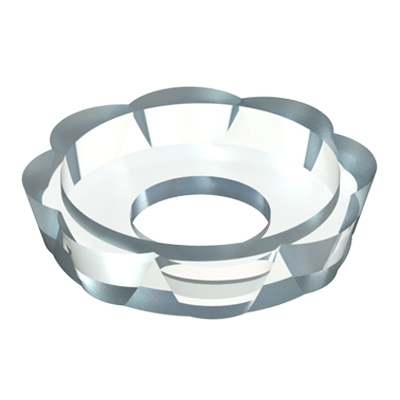

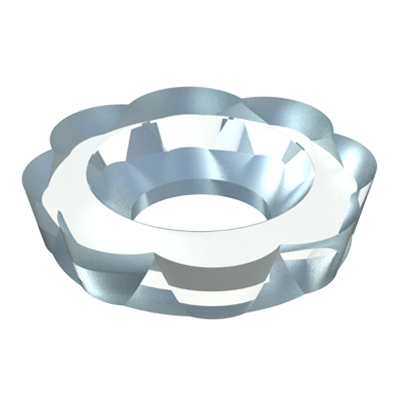

Nakładka na śruby MKPTA   Podkładka do nakładki MKPTA MKPTC   Podkładka stożkowa do nakładki MKPTA MKPTD
