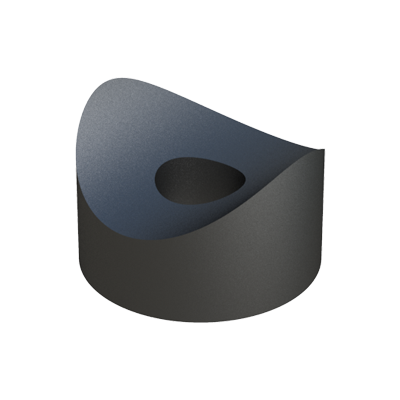

Nasz konektor żeberkowy z siodełkiem jest idealny do połaczenia 2 rur okrągłych, o tych samych, lub o róznych średnicach.
 Produkowane w kolorach RAL

Rysunki PDF:
UL94:
IP:
RoHS:
Jednostka miary:: Milimetry


Numer katalogowy
Dla Rury
Grubość Rury
L
H
Gniazdo Srubę (SW) / Metryczne (M)



Więcej
info.
02300400387 15,00 1,00 20,00 1,50 M6
02300400388 16,00 1,00 20,00 1,50 M6
02300400389 16,00 1,50 20,00 1,50 M6
02300400390 18,00 1,00 20,00 1,50 M6
02300400391 18,00 1,50 20,00 1,50 M6
02300400392 20,00 1,00 20,00 1,50 M6
02300400393 20,00 1,50 20,00 1,50 M6
02300400394 22,00 1,00 20,00 1,50 M6
02300400395 22,00 1,50 20,00 1,50 M6
02300400396 23,00 1,00 20,00 1,50 M6
02300400397 24,00 1,00 20,00 1,50 M6
02300400398 24,00 1,50 20,00 1,50 M6
02300400399 25,00 1,00 26,00 1,50 M6
02300400400 25,00 1,50 26,00 1,50 M6
02300400401 25,00 2,00 26,00 1,50 M6
02300400402 26,00 1,00 26,00 1,50 M6
02300400403 26,00 1,50 26,00 1,50 M6
02300400404 26,00 2,00 26,00 1,50 M6
02300400405 26,00 2,50 26,00 1,50 M6
02300400406 27,00 1,00 26,00 1,50 M6
02300400407 27,00 1,50 26,00 1,50 M6
02300400408 27,00 2,00 26,00 1,50 M6
02300400409 27,00 2,50 26,00 1,50 M6
02300400410 28,00 1,00 26,00 1,50 M6
02300400411 28,00 1,50 26,00 1,50 M6
02300400412 28,00 2,00 26,00 1,50 M6
02300400413 28,00 2,50 26,00 1,50 M6
02300400414 30,00 1,00 26,00 1,50 M6
02300400415 30,00 1,50 26,00 1,50 M6
02300400416 30,00 2,00 26,00 1,50 M6
02300400417 32,00 1,00 26,00 1,50 M6
02300400418 32,00 1,50 26,00 1,50 M6
02300400419 32,00 2,00 26,00 1,50 M6
02300400420 32,00 2,50 26,00 1,50 M6
02300400421 38,00 1,00 29,00 1,50 M8
02300400422 38,00 1,50 29,00 1,50 M8
02300400423 38,00 2,00 29,00 1,50 M8
02300400424 40,00 1,50 29,00 1,50 M8
02300400425 40,00 2,00 29,50 2,50 M8
02300400426 40,00 2,50 29,00 1,50 M8
02300400427 40,00 3,00 29,00 1,50 M8

Jeśli są Państwo zainteresowani częściami z rodziny LTRKB, mogą być Państwo również zainteresowani tymi oto rodzinami cześci:

This <b>spacer</b> is used for connecting round tubes from - <b>12 to 42 mm</b> - to a flat surface.
The reference numbers that begin with 003 are made of polyethylene (LDPE) in black color while the reference numbers that begin with 001 are made of nylon (PA66) in natural and black color, for special colors, please contact us.
<br>
If you need to connect several tubes, please visit our group: <u> <a href='https://www.isc-sl.com/connectors/isccn'>Connectors.</u></a>
